Quick start¶

Prerequisites¶

The following packages need to be installed for generating fabric HDLs. If you have encounter problems during installation, please refer to the Installation section.

Version >= 3.12

sudo apt-get install python3-virtualenv

Note

If you get the warning ModuleNotFoundError: No module named 'virtualenv' or errors when installing the requirements, you have to install the dependencies for your specific python version. For Python 3.12 use

sudo apt-get install python3.12-virtualenv

Note

Some Linux distributions require installing tkinter separately. Otherwise, you might get the error ModuleNotFoundError: No module named 'tkinter', when running FABulous. To install tkinter on Ubuntu or Debian based systems, use the following command:

sudo apt-get install python3-tk

git clone https://github.com/FPGA-Research/FABulous

We recommend using python virtual environments for the usage of FABulous. If you are not sure what this is and why you should use it, please read the virtualenv documentation.

cd FABulous
virtualenv venv
source venv/bin/activate

Now there is a (venv) at the beginning of your command prompt. You can deactivate the virtual environment with the deactivate command. Please note, that you always have to enable the virtual environment with source venv/bin/activate to use FABulous.

To finally install FABulous, run:

pip install -e .

inside the FABulous folder, with the activated virtual environment.

Installing CAD toolchain packages¶

The following packages need to be installed for the CAD toolchain:

If you are using yosys oss-cad-suite, then there is no need to install the following packages.

Nextpnr-generic version > 0.4-28-gac17c36b
Yosys ghdl plugin: Only needed for VHDL synthesis

We have also provided a command to install the above packages automatically.

FABulous install-oss-cad-suite

Note

We recommend using the OSS CAD Suite to install the packages.

If you just want to install Yosys using apt, make sure you have at least Ubuntu 23.10 (24.04 for the LTS versions) installed to meet the above requirement.

Running FABulous¶

If you have not done it yet, please activate your virtual environment:

source venv/bin/activate

Then, you can check if FABulous is installed correctly by running:

FABulous

Which should print the help message of FABulous, like following:

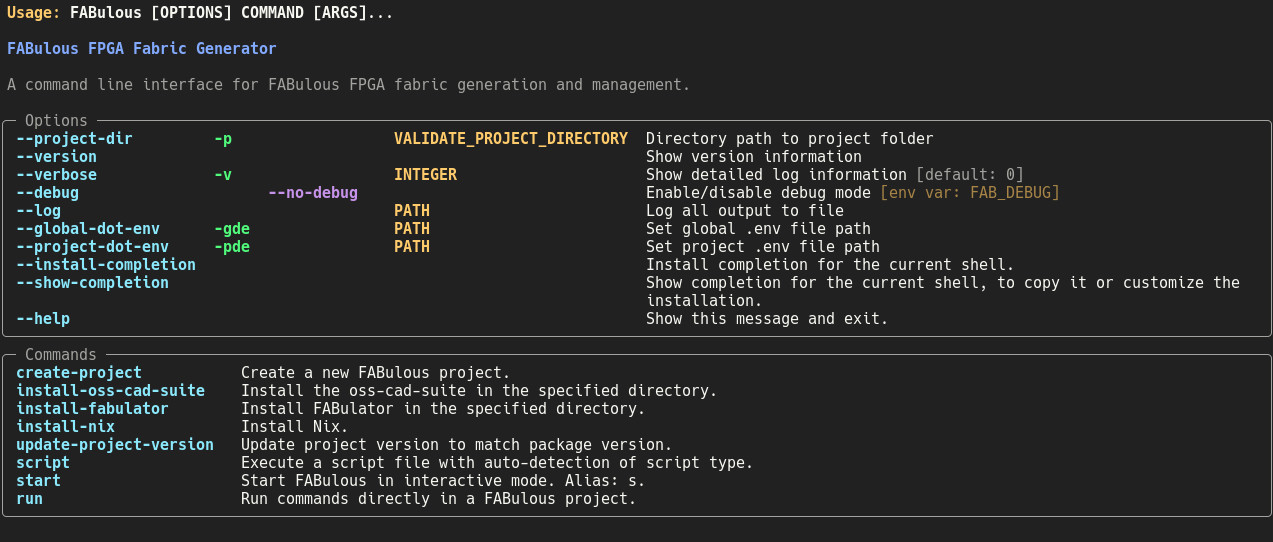

FABulous help

Note

If there is a warning like the following:

 RuntimeWarning: Unable to import fast Antlr4 parser implementation.
  ImportError: cannot import name 'antlr_to_tuple' from partially initialized module 'fasm.parser' (most likely due to a circular import)

  Falling back to the much slower pure Python textX based parser
  implementation.

  Getting the faster antlr parser can normally be done by installing the
  required dependencies and then reinstalling the fasm package with:
    pip uninstall
    pip install -v fasm

This is expected if the FASM package, that we have as a dependency, can’t find the Antlr4 package, but this is not mandatory for us and FABulous will work perfectly fine without it.

If you still want to fix this issue, you have to install FASM in your virtual environment from source. Please have a look at the FASM documentation for more information.

Building Fabric and Bitstream¶

We offer two ways to run the FABulous flow, either via the FABulous Shell or directly supplying the commands via the command line (similar to Vivado Batch mode).

To use the FABulous Shell, you can run the following command:

FABulous create-project <name_of_project>

Note

If you get an error with saying something like, ModuleNotFoundError: No module named 'tkinter', when running FABulous, you have to install tkinter on your system, as described above in the prerequisites section.

To run The FABulous shell for the created project, go inside the project folder and run the FABulous start command:

cd <name_of_project>
FABulous start

Inside the FABulous shell, run:

fabulous>run_FABulous_fabric
fabulous>run_FABulous_bitstream user_design/sequential_16bit_en.v

To run the FABulous flow directly from the command line, you can use the following commands:

FABulous c <name_of_project> # alias for create-project

# -p is short for --project-dir
FABulous -p <name_of_project> run "run_FABulous_fabric; run_FABulous_bitstream user_design/sequential_16bit_en.v"

After a successful call with the command run_FABulous_fabric the RTL file of each of the tiles can be found in the Tile folder and the fabric RTL file can be found in the Fabric folder.

After a successful call with the command run_FABulous_bitstream user_design/sequential_16bit_en.v. The bitstream and all the log files generated during synthesis and place and route can be found under the user_design folder. The bitstream will be named as sequential_16bit_en.bin.
