Simulation setup#
FABulous provides a simulation environment to test the fabric and the bitstream generated for it. For simple use cases, there is the run_simulation command in the FABulous shell. For more complex use cases it can be useful to create an own flow, like the following example make based flow.
Please make sure to use recent versions of (Yosys)[YosysHQ/yosys], (nextpnr-generic)[YosysHQ/nextpnr] (_not_ the old FABulous nextpnr fork) and (GHDL with mcode backend)[ghdl/ghdl] or use the (OSS-CAD-Suite)[YosysHQ/oss-cad-suite-build] which provides nightly builds of the necessary dependencies.
Note
The OSS-CAD-Suite is providing GHDL only with LLVM backend, which increases the simulation speed for FABulous projects significantly. We recommend using the latest GHDL with mcode backend for the best simulation performance.
Also, make sure you have the make package installed:
$ sudo apt-get install make
The following series of commands can be used to easily run a simulation with a test bitstream loaded, using Icarus Verilog:
(venv)$ cd demo/Test
(venv)$ make
FABulous comes with 3 different simulation methods configuration module,
Serial (Mode 0)
Send configuration in through UART
Parallel (Mode 1) - default in the testbench
Use parallel configuration port
Bitbang configuration port (To be supported in the testbench)
We have produced a quick asynchronous serial configuration port interface that is ideal for microcontroller configuration. It uses the original CPU interface that we have in our TSMC chip. The idea of the protocol is as follows:

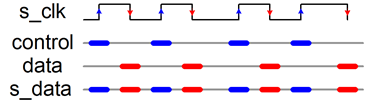

We drive s_clk and s_data. On each rising edge of s_clock, we sample data and on the falling edge, we sample control.
Both values get shifted in a separate register. If the control register sees the bit-pattern x”FAB0” it samples the data shift register into a hold register and issues a one-cycle strobe output (active 1).
The next figure shows the enable generation (and input sampling) for generating the enable signals for
the control shift register and
the data shift register.
